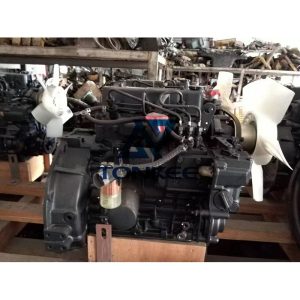

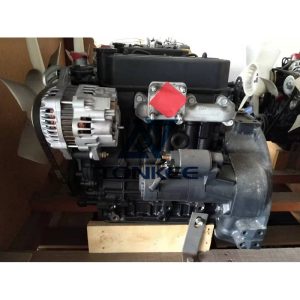

China L3E L3E13.5K30D01 genset engine assy EC15BXTV



Engine type: 3-cylinder, water-cooled, direct-injection diesel engine
Displacement: 1.3 liters
Bore x Stroke: 78 mm x 78.4 mm
Compression ratio: 22:1
Power output: 10.1 kW (13.5 hp) at 3,000 rpm
Torque: 37.5 Nm at 2,000 rpm
Emissions level: Tier 4 Final, Stage V
Cooling system: Water-cooled with integrated coolant pump, thermostat and temperature sensor
Fuel system: Direct injection with high-pressure fuel pump, fuel injectors, fuel filter and water separator
Lubrication system: Forced-feed lubrication with full-flow oil filter, oil cooler and oil pressure switch
Electrical system: 12V electrical system with starter motor and alternator
Dimensions (L x W x H): 426 mm x 470 mm x 532 mm
Weight: 82 kg (dry weight)
